Details

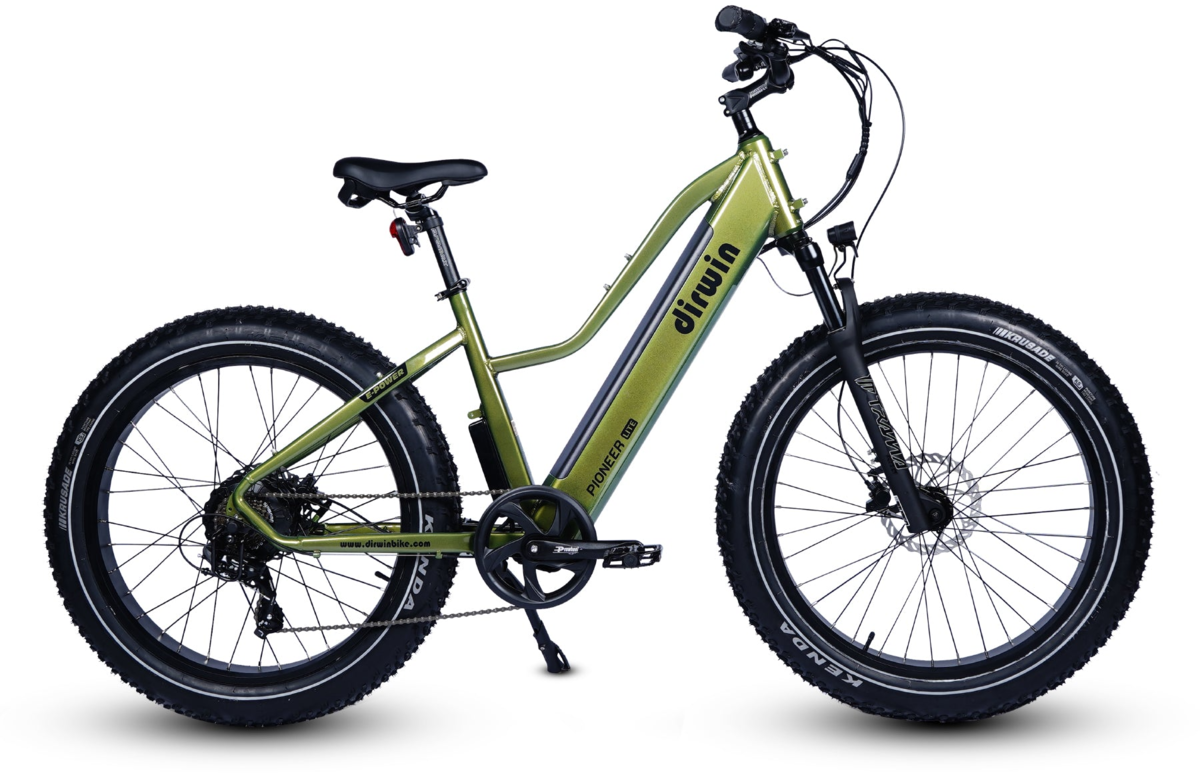

The Pioneer Lite fat tire electric bike is ready for any rough conditions, from mountain paths to gravel roads. A powerful 750W motor, up to 50 miles range, and 26“ x 4.0” wearproof fat tires will take you anywhere with confidence. Your ride will be smooth thanks to the hydraulic suspension fork and when it’s time to stop the 180mm Hydraulic Brakes are always up to the task. The Pioneer Lite is IPX5 water resistant and also includes front and rear lights along with an ultrabright color LCD display so your adventure doesn't have to stop when the sun sets.
COLOR SCREEN DISPLAY
The Pioneer Lite’s ultrabright color LCD display offers crystal clear visibility in any weather and it features all the information you need such as Speed, Odometer, Battery level, and more.
LONG LASTING POWER
Our fully integrated, removable battery combined with our best in class controller, which features Dirwin’s “Power Smart” technology, enables the Pioneer Lite to achieve the highest power output while consuming the least amount of electricity so that you can get up to 50 miles on a single charge!
HIGH PERFORMANCE MOTOR 750Watt 80Nm
Sand, gravel, or snow... Conquer all-terrain with Dirwin Pioneer's high performance 750 Watt rear-drive motor which delivers all the power you need. Its 80Nm of torque won't leave you stranded and you have absolute control of the power delivery with Shimano's 7-speed Altus gears and 5-levels of pedal assistance.
Whether you're looking for an electric hunting bike, or just an ebike for your daily commute, the Pioneer Lite has you covered.
Total Payload Capacity: 350 lbs
Recommended Rider Height: 5'4" - 6'4"
| A. Total Length | 74.8" |
|---|---|
| B. Handle Bar Height | 45.5" |
| C. Wheelbase | 45" |
| D. Minimum Seat Height | 30" |
| E. Maximum Seat Height | 35.5" |
| F. Chain Stay Length | 20" |
| G. Standover Height | 31" |
| H. Top Tube Length | 23" |
| I. Wheel Diameter | 29" |
| J. Head Tube Length | 6" |
| K. Handle Bar Length | 27.5" |
| M. Reach | 15.5" |
Specs
| Frame | A6061 Aluminium Alloy (IPX5 Water Resistant) |
|---|---|
| Fork | Adjustable Hydraulic Suspension Fork |
| Tires | 26"x 4.0" Kenda Fat Tires |
| Chainrings | 48T |
| Shifters | Shimano 7S |
| Rear Derailleur | 7-Speed Shimano Altus |
| Cassette/Freewheel | Shimano 7-Speed |
| Brakes | 180mm Hydraulic |
| Handlebars | F22.2*700L |
| Seatpost | F30.4*350L |
| Saddle | HQ-Comfort Saddle |
| Motor | 750 Watts |
| Battery | 48V 13Ah Lithium Battery (11 lbs) |
| Controller/Display | TFT LCD Color Display with USB-C Charging |
| Charger | US-Standard 2A Smart Charger (fits all Dirwin batteries) |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Army Green / One Size / 26-inch | 750656598054 | 9102C | DIR29199870E |
| Tundra Grey / One Size / 26-inch | 750656598061 | 9102L | PIO22388191N |
